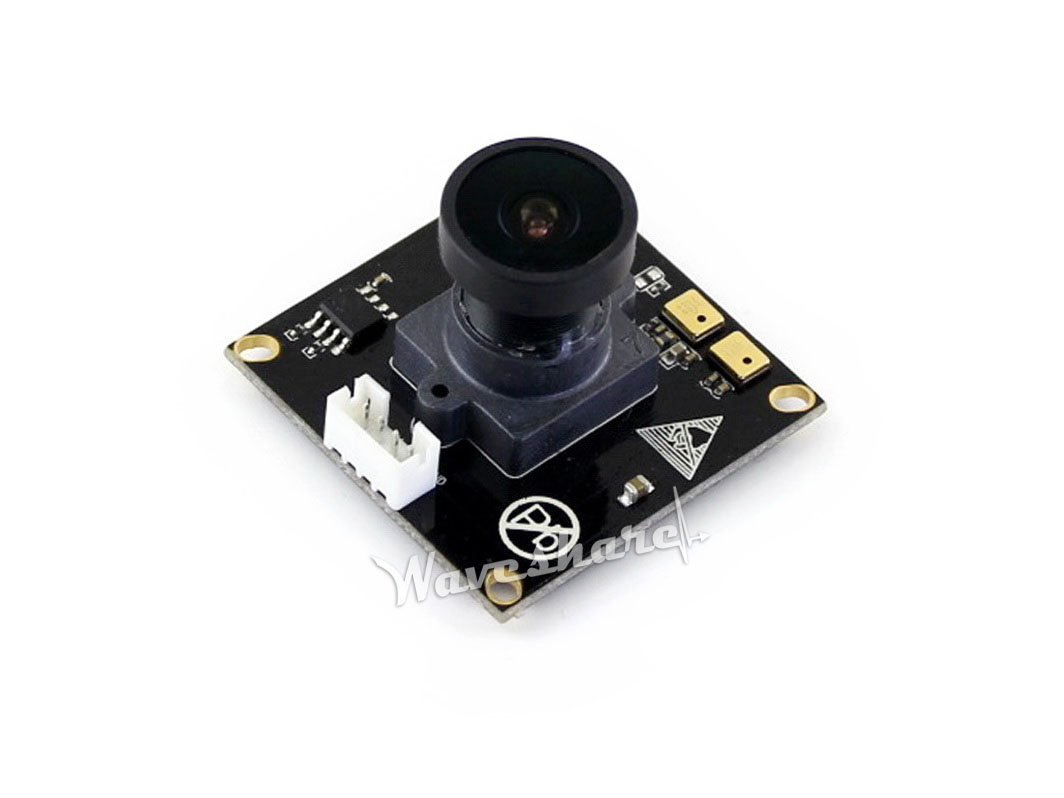

Waveshare USB Camera (A), IMX179 8MP HD, Embedded Mic

Artnr.: WS2-014122

Waveshare USB Camera (A), IMX179 8MP HD, Embedded Mic

IMX179 8MP USB-Kamera, Ultra High Definition, integriertes Mikrofon, treiberfrei

46,90 € inkl. 19% MwSt.

39,41 € exkl. MwSt.

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Features

8 megapixel IMX179 sensor
3288x2512 resolution
USB interface, UVC protocol, driver-free, plug-and-play
Supports Raspberry Pi and Jetson Nano
DSP
- Automatic white balance (AWB)
- Automatic exposure (AEC)
- Automatic gain control (AGC)
Camera specifications
- CCD size: 1/3.2inch
- Aperture (F): 1.8
- Focal Length: 2.8mm
- Field of View (Diagonal): 145°
Mic specifications
- Sensitivity: -26dB (1kHz 1Pa)
Interface: USB2.0
Image formats: MJPEG, YUY2
Operating temperature: 0°C ~ 50°C
Dimension: 38mmx38mm
Supported OS: Windows, Linux

Wiki : www.waveshare.com/wiki/IMX179_8MP_USB_Camera_(A)

Selection Guide

Part Number	Pixels	Sensor	Best Resolution	Dimension	Field of View	Feature
OV2710 2MP USB Camera (A)	2MP	OV2710	1920x1080	38mmx38mm	145°	Low-light sensitivity
OV5640 5MP USB Camera (A)	5MP	OV5640	2592x1944	18×36mm	135°	Auto focusing
OV5648 5MP USB Camera (A)	5MP	OV5648	2592x1944	9mmx62mm	70°	Small in size
IMX335 5MP USB Camera (A)	5MP	IMX335	2592x1944	38×38mm	106°	Manually focusing
IMX179 8MP USB Camera (A)	8MP	IMX179	3288x2512	38mmx38mm	145°	HD, Embedded digital mic
IMX258 13MP OIS USB Camera (A)	13MP	IMX258	4224×3192	38×35.8mm	127°	HD, OIS
