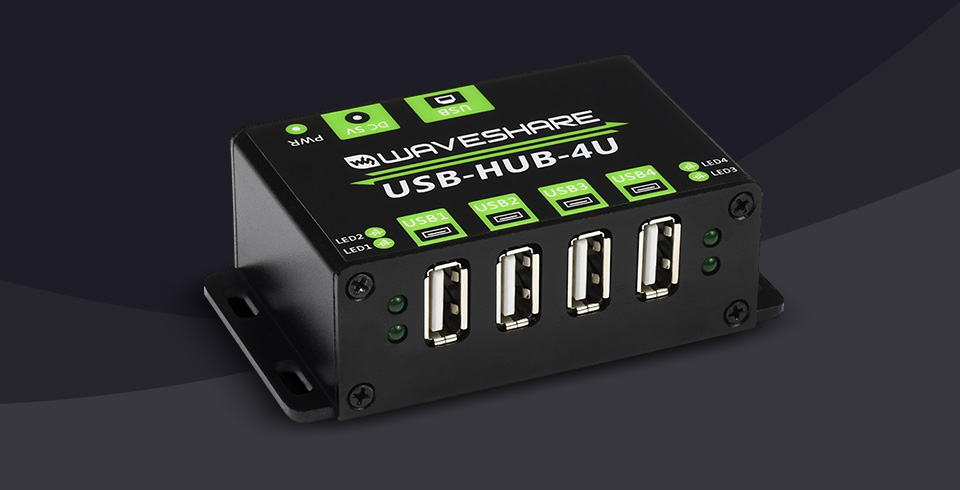

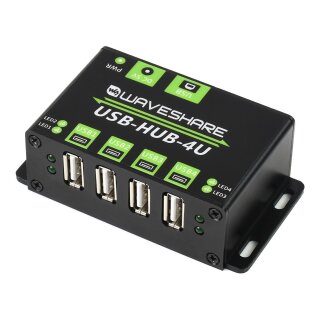

Waveshare USB-HUB-4U
Description
Industrial 4U USB HUB
suitable for industrial/office environments with higher level device requirements
Features at a glance
- 4x extended USB ports, compatible with USB 2.0 / 1.1
- Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
- ESD protection for each USB port, preventing electric surge damage and data loss
- Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
- Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
- LED indicators for monitoring operating statuses of power supply and USB ports
- Industrial grade metal case, rugged & durable, with mounting holes for easy installation
Specifications
| Standard | USB 2.0 |
|---|---|
| Data rate | up to 480Mbps |
| USB HUB input | operating voltage: 5V connector: USB-B |
| USB output | operating voltage: 5V@Imax:1.2A? connector: USB-A |
| External power | power supply voltage: DC 5V? connector: DC jack |
| Operating environment | -40? ~ 85? |
| OS support | Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |
? up to 1.2A Max output current for each USB ports, when there's enough power input ? comes with 5V 2A power supply, it is recommended to use another 5V 4A or above power supply for higher USB loads

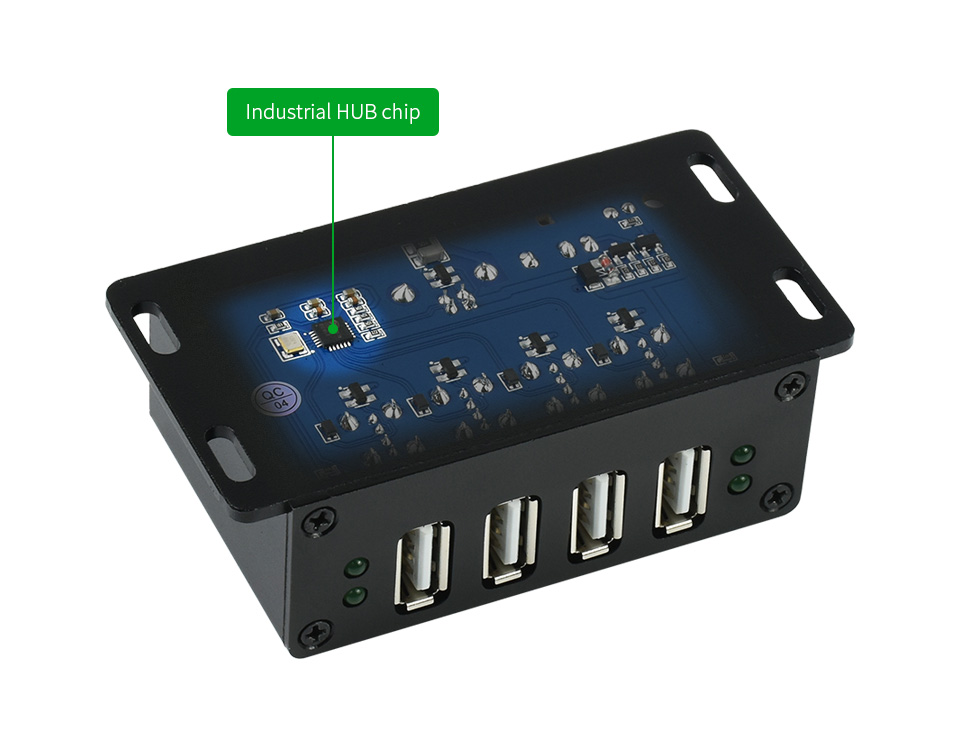

Industrial grade HUB chip
MTT technology, 4x concurrent USB connections, stable and smooth

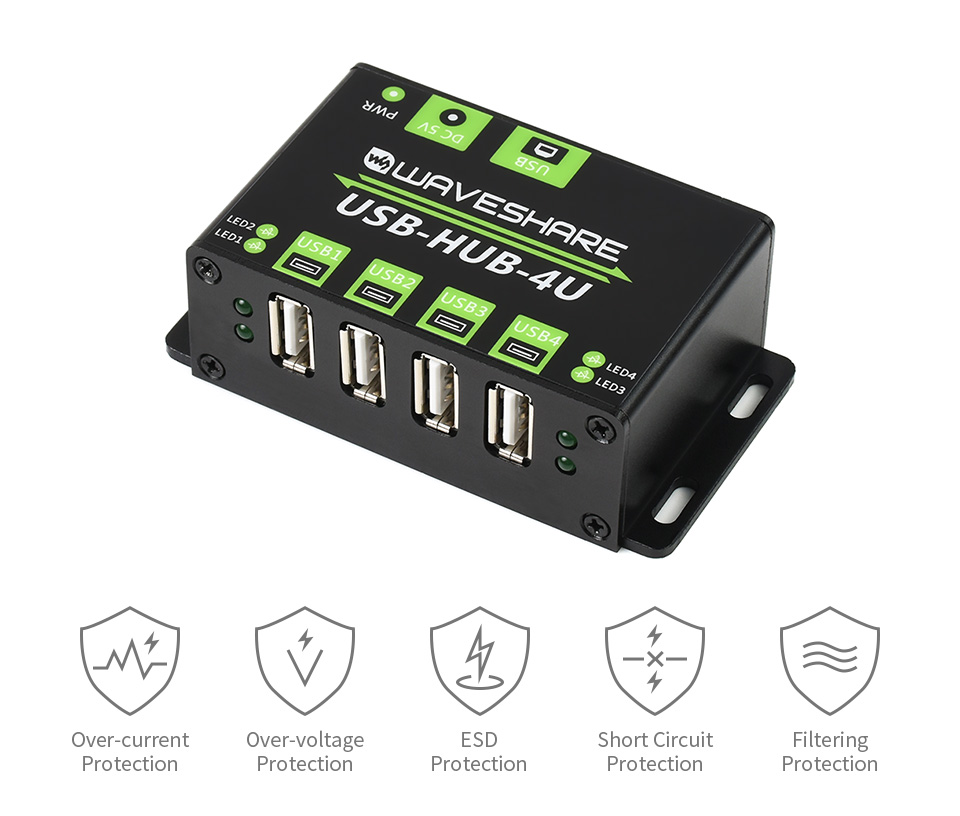

Multiple protections, more safe
over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection...
Multiple OS support, plug & play

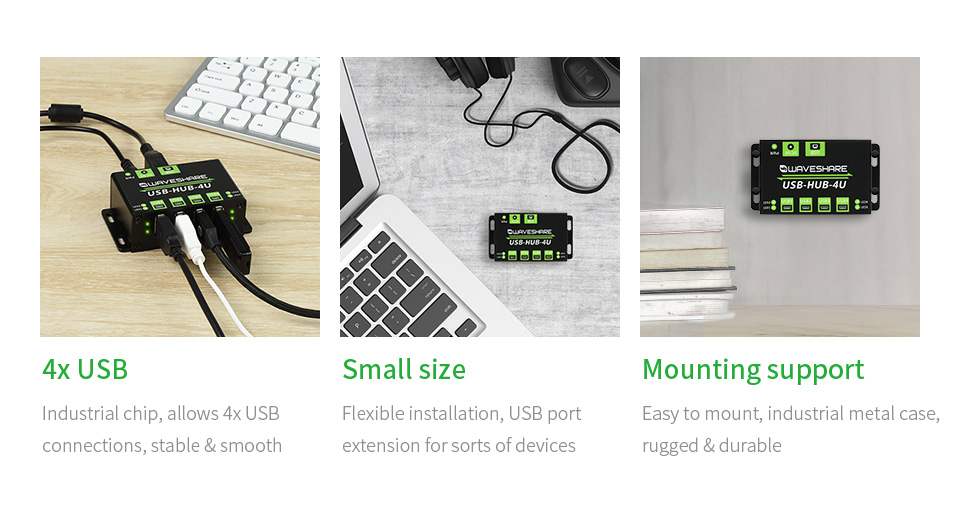

Application environments
suitable for industrial/office environments with higher level device requirements

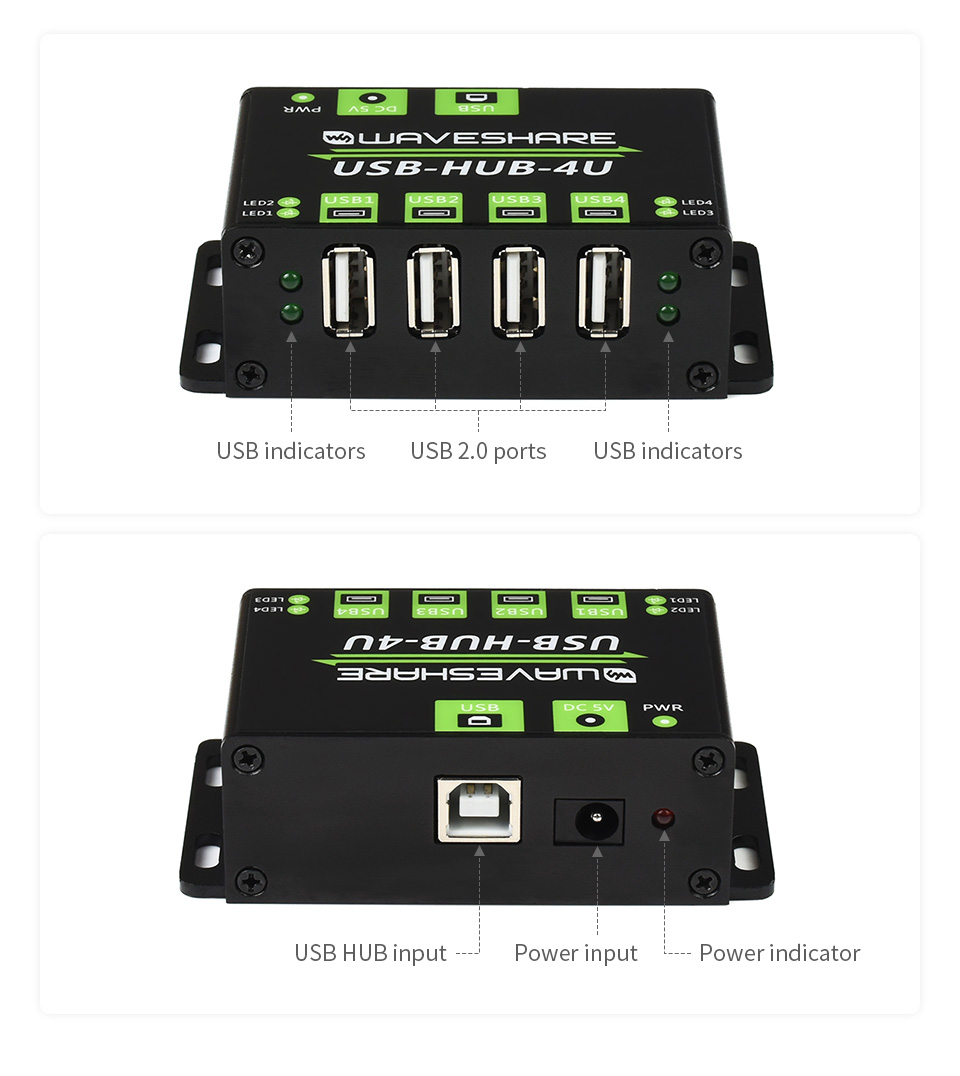

Interface introduction

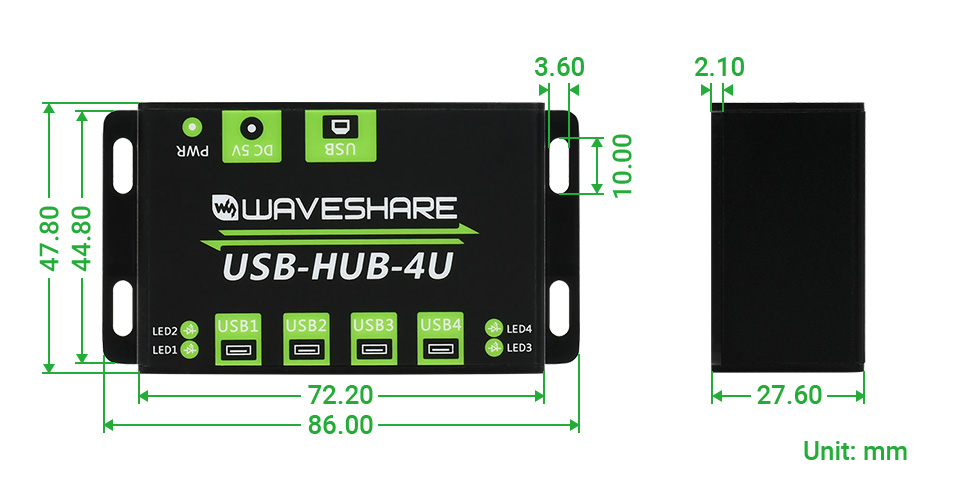

Outline dimensions
Package Contents
- USB-HUB-4U x1
- USB cable ~1.2m x1
- OPTIONS 5V 2A power adapter x1
