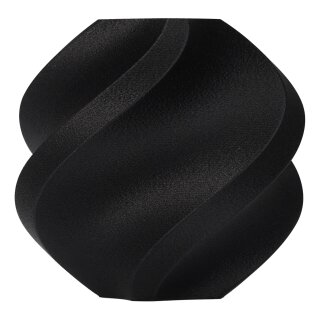

Bambu Lab PA6-CF Filament on Spool 72100 Black (500g)
Description
Bambu PA6-CF is a carbon fiber reinforced PA6 (Nylon 6) filament. The carbon fiber reinforcement provides significantly high stiffness and strength properties in dry environments and maintains exceptional heat resistance and impact resistance. Similar to other Bambu CF Filaments, these outstanding mechanical properties make it an ideal choice for printing fixtures, clamps, automotive and mechanical components and various structural and engineering parts that used in dry environments.
Printing Tips
- Drying conditions: 80℃ for 10 hrs. PA6-CF is highly sensitive to humidity. To achieve optimal printing performance, it is recommeded further drying before use and after storage. For more details please refer to: Filament drying instructions on Bambu Lab Wiki.
- Bambu PA6-CF will experience a decrease in strength and stiffness after absorbing water,making it not recommended for printing models with high requirements for strength, stiffness, and dimensional stability, especially thin and elongated models. The prints of PA6-CF usually become tougher and more resistant to impacts, drops, and collisions when they get damp, you can dampen and soften the prints in advance if the model requires high toughness.
- When printing a model with support, it is necessary to remove the support structure within 2 hours to prevent it from being difficult to remove after being damp and softened. Please dry the prints and let them cool down if it is difficult to remove the support, and then remove the support in time.
- Fully impregnating the surface of the prints with paint, wax and other water-proof coatings can inhibit water absorption and prevent them from becoming soft.
- Feel free to reuse your Bambu Reusable Spool. Bambu Lab has designed the entire filament feeding system around a reusable spool concept, reducing plastic waste in filament consumption by at least 20%.
- Bambu PA6-CF is not compatible with AMS
Model Overview
| Color | Hex Code | Display |
|---|---|---|
| Black | #000000 |
| Recommended Printing Settings | |
|---|---|
| Drying Settings (Blast Drying Oven) | 80 ℃, 8 - 12 h |
| Printing and Keeping, Container's Humidity | <20% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 260 - 290 ℃ |
| Bed Temperature (with Glue) | 80 - 100 ℃ |
| Printing Speed | < 100 mm/s |
| Physical Properties | |
| Density | 1.09 g/cm³ |
| Vicat Softening Temperature | 212 ℃ |
| Heat Deflection Temperature | 186 ℃ |
| Melting Temperature | 223 ℃ |
| Melt Index | 6.8 ± 0.6 g/10 min |
| Mechanical Properties | |
| Tensile Strength | 102 ± 7 MPa |
| Breaking Elongation Rate | 5.8 ± 1.6 % |
| Bending Modulus | 5460 ± 280 MPa |
| Bending Strength | 151 ± 8 MPa |
| Impact Strength | 40.3 ± 2.5 kJ/m² |
Package Contents
- Filament x 1 & Desiccant x 1
- Instructions x 1 & Spool Sticker x 1
- Package x 1
- Filament Label x 1
Features
Superior Strength and Stiffness
As a new member of Bambu high performance filaments, PA6-CF keeps superior stiffness and strength properties in dry environments, it is perfect for printing load-bearing structural components.
Impact & Vibration Resistance
Bambu ABS filament offers exceptional heat resistance (Heat Deflection Temperature: 87℃) coupled with commendable mechanical properties. This makes it an outstanding choice for everyday functional parts that require high-temperature resistance.
| Shipping weight: | 1.00 Kg |
