Description

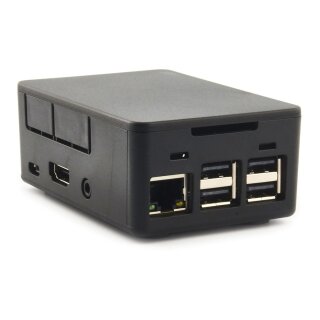

This case is designed to fit Raspberry Pi models B+, 2B, 3B, and 3B+.
Made in Canada from high-quality ABS material, it is tall enough to accommodate various add-on boards while still looking stylish and slim. It is slightly taller than most standard cases but fits perfectly with boards like the HiFiBerry DAC+.
The HighPi case is very user-friendly. You can install or remove the Raspberry Pi 3B board quickly and without tools. A snap action locks the board in place, and another secures the lid without any rattling. You can easily remove both the board and the lid with one finger.
Whether you're using a basic Raspberry Pi 3B or modifying it, the HighPi case has enough room for HATs, breakout boards, or heat sinks. It features vents on three sides that also serve as cable ports for GPIO connections. The two-section opening lets you decide how much of the A/V side to open for attached board connectors.
This case perfectly fits HiFiBerry DAC+ Light, Standard, Pro, and RTC HATs, but it does not fit boards with headphone jacks, like the DAC+ ADC.
You can mount the HighPi case on a wall horizontally using two screws for easy removal, or in any orientation, including upside down, with four screws from inside the case. When wall-mounted horizontally, the A/V and audio cables hang downward, improving cable management and reducing strain on the connections.
Feautures
- Durable two-part ABS plastic case
- Easy to use with no tools required
- Large internal space for HATs, breakout boards, or heat sinks
- Vents on three sides serve as cable ports
- Two-section opening on A/V side for breakout board connections
-
Mounting option 1:
- Two M3.5/M3/#6 screws for wall mounts
- Allows easy removal and horizontal setup with A/V side down, 40mm spacing
-
Mounting option 2:
- Four M3.5/M3/#6 screws for secure mounting from inside
- Can be set up in any orientation with 68.3 x 38.8mm spacing
- Includes four self-adhesive feet
- Matte finish to hide fingerprints
- Available in black, red, or clear; order two to mix lids!
- External dimensions: 96 x 66 x 41mm
- Internal volume for breakout boards: 91.0mm (length) x 60.0mm (width) x 28.8mm (height)
| Shipping weight: | 0.06 Kg |
