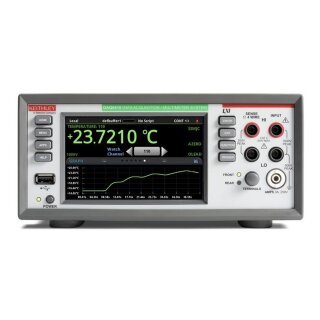

Keithley DAQ6510/7700 Logging Multimeter System with 20-Channel Multiplexer Card

The DAQ6510 offers precise data acquisition and logging with user-friendly operation and a 5-inch multi-touch display. It comes with a 2-year accuracy specification and a wide range of drivers for various applications. With 12 interchangeable modules and 2 slots, it can measure or control up to 80 test subjects. It includes two 6x8 matrix modules for up to 96 junction points for IC testing. For high-throughput production testing, semiconductor relay modules with a scanning speed of up to 800 channels per second are available to minimize downtime.

Key Features

• A 5-inch touchscreen provides user-friendly operation.
• The multimeter features a 6½-digit display with 0.0025% DCV accuracy for 2 years.
• Standard communication interfaces include LAN/LXI and USB-TMC, with optional ones like GPIB, RS-232, and TSP-Link®.
• Up to 80 test subjects can be connected with 12 different modules.
• There are 80 channels for temperature measurements and up to 800 channels per second with the semiconductor relay module.
• Front panel jacks enable standalone operation.
• KickStart - a code-free control software.
• A 3-year warranty is included.

You can purchase the DAQ6510 bundled with the Plug-in Module 7700 to maximize test bandwidth with a wide range of plug-in switching modules.

The Plug-in Module 7700 offers 20 channels for 2-pole or 10 channels for 4-pole multiplexer circuits, which can be configured as two independent multiplexer banks. Additionally, it provides two additional protected channels for current measurements. The automatic CJC is designed to perform thermocouple temperature measurements without the need for additional accessories. Furthermore, the 7700 includes self-holding electromechanical relays that allow signal bandwidths of up to 50 MHz. It is particularly suitable for RTD, thermistor, and thermocouple temperature applications.

Key Features of the Plug-in Module 7700

• 20 channels for universal measurements, plus two channels for current measurements
• Oversized screw terminals for easier connections
• 50 MHz bandwidth
• 300 V, 1 A capacity for voltage channels; 60 W, 125 VA
• 3 A capacity for current channels
• Low insertion loss of up to 50 MHz
• Relay closures are stored in onboard memory
