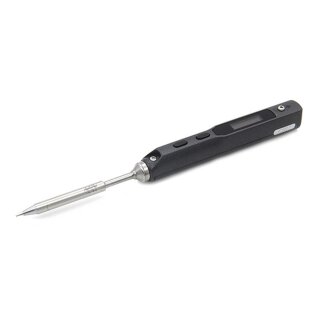

Miniware Soldering Iron TS100-BC2

TS100 employs 304 stainless steel nested shell of Polycarbonate plastic. It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with smart chip. Temperature can be controlled accurately, stably and easily adjusted from 100°C to 400°C. High heating efficiency, heating up from 30°C to 300°C only takes about 10 seconds. Adopt safety circuit design, anti-static structure, usage safe. Have sleep mode and automatic over-heating warning. Through edit the parameter file, custom your own temperature curve and buttons function. Open source for writing your own App.

Specifications

• Power: 65W(Max)
• Temperature Stability: ±2%
• Temperature Range: 100°C~400°C(Max)
• Max. Operation Ambient Temperature: 40°C
• Soldering Tip Resistance to Ground: <2Ω
• Screen: OLED Screen
• Power Interface: DC5525 Power Interface
• Certification: Compliant with EU Certification CE FCC
• Control Part: Length 96mm, Diameter 16.5mm
• Net Weight: 21g (Control Part)
• Data Transfer Interface: Micro USB Interface

Contents

• 1× TS100 Controller (Black Color)
• 1× TS100 Soldering Tip (B2 / BC2 / I)
• 1× Allen key
• 1× Safety Instructions
