Official Raspberry Pi 5 Case Black/Grey

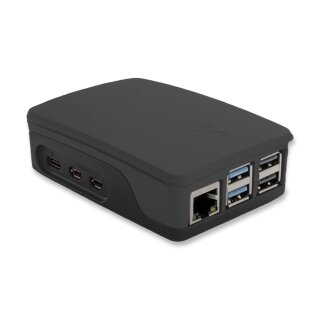

The Raspberry Pi Case for Raspberry Pi 5 is a clip-together four-part enclosure with an active cooling fan. It keeps your Raspberry Pi 5 at a comfortable operating temperature even under heavy load.

Features

• Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
• 12mm x 17mm x 4mm heatsink with self-adhesive pad improves heat transfer from the processor
• Easily removable lid exposes fan and breakout slot for cables and GPIO
• Integrated mounting features allow for case stacking
• HATs can be mounted to the enclosure with stand-offs and GPIO header extenders (not included)
• Four silicone feet for the case are included

Specification

• Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
• Fan speed control: Pulse width modulation control with tachometer
• Maximum airflow: 2.79 CFM
• Maximum fan speed: 8000 RPM +/- 15%
• Case material: ABS (base, frame, lid) and PC (fan assembly)
