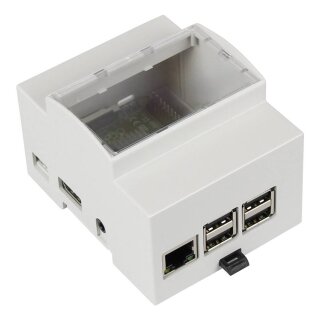

Raspberry Pi 3 B+ DIN Rail Kit

The Raspberry Pi 3 Model B+ features a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

If you want to get started quickly, take a look at our Raspberry Pi Kits. Those offer carefully choosen components that offer 100% compatibilit and a great user experience.

Included with Delivery

Raspberry Pi 3 Model B+ board in original packaging (Made in UK).

Included with our bundles:

Technical Specifications

• Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
• Memory: 1GB LPDDR2 SDRAM
• Connectivity:
• 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
• Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
• 4 × USB 2.0 ports
• GPIO: Extended 40-pin GPIO header
• Video & Sound:
• 1 × full size HDMI
• MIPI DSI display port
• MIPI CSI camera port
• 4 pole stereo output and composite video port
• Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics
• Storage: MicroSD card for loading operating system and data storage
• Input power:
• 5 V/2.5 A DC via micro USB connector
• 5 V DC via GPIO header
• Power over Ethernet (PoE)?enabled (requires separate PoE HAT)
• Environment: Operating temperature, 0?50 °C
• Production lifetime: The Raspberry Pi 3 Model B+ will remain in production until at least January 2028.

Helpful Links

• RaspberryPi.org: Raspberry Pi 3 Model B+
• Raspberry Pi Forum: Getting Started with the Raspberry Pi
