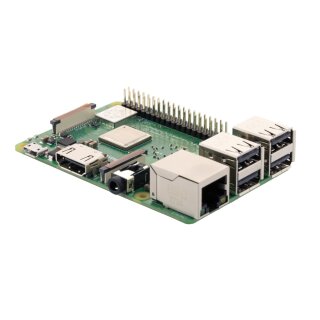

Raspberry Pi 3 Model B+ (Rev. 9)

Artno.: 402034-001
Single Board Computer, 4x1.4 GHz, 1 GB RAM, 4x USB, 40 Pin GPIO, CSI (camera port), DSI (display interface), LAN, WLAN, Bluetooth
Variant
38.50 € incl. 19% VAT
32.35 € excl. VAT

plus shipping

100+ On stock

Shipping time: 1 - 3 business days

Your configuration
Recommended Accessories
  • Raspberry Pi Pinout Card
    Useful helper in credit card size for all Raspberry Pi boards, with pinout for GPIO, CSI/DSI and A/V ports, overview of PCB test points, useful terminal commands and more
    100+ On stock
    Shipping time: 1 - 3 business days
    Useful helper in credit card size for all Raspberry Pi boards, with pinout for GPIO, CSI/DSI and A/V ports, overview of PCB test points, useful terminal commands and more
  • Raspberry Pi Heat Sink Kit
    Black anodized aluminum heatsinks with self-adhesive thermal pad for Raspberry Pi CPU and USB/LAN IC
    100+ On stock
    Shipping time: 1 - 3 business days
    Black anodized aluminum heatsinks with self-adhesive thermal pad for Raspberry Pi CPU and USB/LAN IC
  • ABL Components Raspberry Pi Premium Heat Sink
    Premium heat sink with self-adhesive thermal pad for the Raspberry Pi CPU, 13x13.5x10mm, 27 K/W thermal resistance
    100+ On stock
    Shipping time: 1 - 3 business days
    Premium heat sink with self-adhesive thermal pad for the Raspberry Pi CPU, 13x13.5x10mm, 27 K/W thermal resistance
  • Goobay 58574 HDMI Cable, HDMI 2.0 LC, 2.00m
    Series 2.0 LC High Speed HDMI Kabel mit Ethernet, 2 m, Schwarz - HDMI-Stecker (Typ A) > HDMI-Stecker (Typ A)
    100+ On stock
    Shipping time: 1 - 3 business days
    Series 2.0 LC High Speed HDMI Kabel mit Ethernet, 2 m, Schwarz - HDMI-Stecker (Typ A) > HDMI-Stecker (Typ A)
  • Raspberry Pi PoE+ HAT (R2)
    PoE HAT for Raspberry Pi 3B+, 4B, CM4IO, IEEE 802.3af (802.3at Type 1), 5V/4A output, revision 2 with improved efficiency
    100+ On stock
    Shipping time: 1 - 3 business days
    PoE HAT for Raspberry Pi 3B+, 4B, CM4IO, IEEE 802.3af (802.3at Type 1), 5V/4A output, revision 2 with improved efficiency
  • Raspberry Pi TV HAT
    HAT for the Raspberry Pi for receiving terrestrial DVB-T/DVB-T2 TV, compatible with Raspberry Pi Zero/1B+/2B/3B/3B+/4B
    Orderable
    Shipping time: 9 - 11 business days
    HAT for the Raspberry Pi for receiving terrestrial DVB-T/DVB-T2 TV, compatible with Raspberry Pi Zero/1B+/2B/3B/3B+/4B
  • Raspberry Pi Sense HAT
    Shield for the Raspberry Pi with a LED matrix, a joystick and multiple sensors (accelerometer, gyrometer, temperature, air pressure, humidity)
    On stock
    Shipping time: 1 - 3 business days
    Shield for the Raspberry Pi with a LED matrix, a joystick and multiple sensors (accelerometer, gyrometer, temperature, air pressure, humidity)
  • Raspberry Pi Build HAT
    Raspberry Pi HAT to control up to 4 LEGO® Technic motors and sensors, compatible with all Raspberry Pi boards
    100+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi HAT to control up to 4 LEGO® Technic motors and sensors, compatible with all Raspberry Pi boards
  • Raspberry Pi Camera Module V2 Standard
    8-megapixel sensor, supports 1080p30, 720p60, and VGA90 video resolutions, compatible with Raspberry Pi models 1, 2, 3, and 4, API support, suitable for time-lapse and slow-motion projects
    100+ On stock
    Shipping time: 1 - 3 business days
    8-megapixel sensor, supports 1080p30, 720p60, and VGA90 video resolutions, compatible with Raspberry Pi models 1, 2, 3, and 4, API support, suitable for time-lapse and slow-motion projects
  • Raspberry Pi Camera Module V2 NoIR
    No infrared filter, it is ideal for monitoring wildlife and plant health in low-light conditions, 8-megapixel sensor, supports 1080p30, 720p60, and VGA90 video resolutions, compatible with Raspberry Pi models 1, 2, 3, and 4, API support, suitable for time-lapse and slow-motion projects
    100+ On stock
    Shipping time: 1 - 3 business days
    No infrared filter, it is ideal for monitoring wildlife and plant health in low-light conditions, 8-megapixel sensor, supports 1080p30, 720p60, and VGA90 video resolutions, compatible with Raspberry Pi models 1, 2, 3, and 4, API support, suitable for time-lapse and slow-motion projects
  • Official Raspberry Pi Camera Module 3
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, integrated IR cut filter, standard lens (75°)
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, integrated IR cut filter, standard lens (75°)
  • Official Raspberry Pi Camera Module 3 Wide
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, integrated IR cut filter, wide-angle lens (120°)
    100+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, integrated IR cut filter, wide-angle lens (120°)
  • Official Raspberry Pi Camera Module 3 NoIR
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, NoIR, standard lens (75°)
    100+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, NoIR, standard lens (75°)
  • Official Raspberry Pi Camera Module 3 NoIR Wide
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, NoIR, wide-angle lens (120°)
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, NoIR, wide-angle lens (120°)
  • Official Raspberry Pi HQ Camera (M12 / S-Mount)
    Raspberry Pi camera module, 12.3 MP, integrated IR cut filter, M12 lens mount, 1/4" tripod mount, incl. 20cm FPC cable
    50+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module, 12.3 MP, integrated IR cut filter, M12 lens mount, 1/4" tripod mount, incl. 20cm FPC cable
  • Official Raspberry Pi HQ Camera
    Raspberry Pi camera module, 12.3 MP, integrated IR cut filter, C-mount lens standard (CS-mount via included adapter ring), 1/4" tripod mount, incl. 20cm FPC cable
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module, 12.3 MP, integrated IR cut filter, C-mount lens standard (CS-mount via included adapter ring), 1/4" tripod mount, incl. 20cm FPC cable
  • Waveshare 9219 Camera (C), 5 MP Fixed Focus
    Camera module with 5 Mega Pixel sensor and fixed focus for the Raspberry Pi, incl. 15cm FPC cable
    10+ On stock
    Shipping time: 1 - 3 business days
    Camera module with 5 Mega Pixel sensor and fixed focus for the Raspberry Pi, incl. 15cm FPC cable
  • Waveshare 10300 RPi Camera (E)
    Raspberry Pi Camera Module, Supports Night Vision
    Out of stock
    Raspberry Pi Camera Module, Supports Night Vision
  • Waveshare 10344 RPi Camera (G)
    Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View
  • Waveshare 10703 RPi Camera (H)
    Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision
38.50 € incl. 19% VAT *

Description

The Raspberry Pi 3 Model B+ features a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

If you want to get started quickly, take a look at our Raspberry Pi Kits. Those offer carefully choosen components that offer 100% compatibilit and a great user experience.

Included with Delivery

Raspberry Pi 3 Model B+ board in original packaging (Made in UK).

Included with our bundles:

Basic Kit Official Kit ModMyPi Kit DIN Rail Kit Flirc Kit
Board Raspberry Pi 3 B+ in original packaging (Made in UK)
Power Supply micro-USB Power Supply 5V/2.5A (EU plug)
Case Basic+ Case Official Case red/white ModMyPi Modular Case black Italtronic DIN Rail Case Flirc Aluminum Case
Heat Sink Heat Sink Kit ABL Premium Heat Sink integrated
HDMI Cable Highspeed HDMI Cable with Ethernet 1m

Technical Specifications

  • Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
  • Memory: 1GB LPDDR2 SDRAM
  • Connectivity:
    • 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
    • Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
    • 4 × USB 2.0 ports
  • GPIO: Extended 40-pin GPIO header
  • Video & Sound:
    • 1 × full size HDMI
    • MIPI DSI display port
    • MIPI CSI camera port
    • 4 pole stereo output and composite video port
  • Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics
  • Storage: MicroSD card for loading operating system and data storage
  • Input power:
    • 5 V/2.5 A DC via micro USB connector
    • 5 V DC via GPIO header
    • Power over Ethernet (PoE)?enabled (requires separate PoE HAT)
  • Environment: Operating temperature, 0?50 °C
  • Production lifetime: The Raspberry Pi 3 Model B+ will remain in production until at least January 2028.
