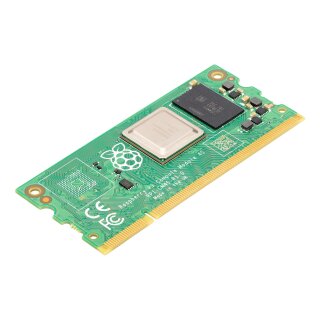

Raspberry Pi Compute Module CM4S01000 (Lite, 1 GB RAM)

Based on the Raspberry Pi 4 Model B architecture, Compute Module 4S is intended for industrial customers migrating from Compute Module 3 or 3+, who wish to continue to use the SODIMM form factor or to take advantage of the increased SDRAM capacity.

Specifications

• Broadcom BCM2711 quad-core 64-bit Cortex-A72 (Arm v8) at 1.5GHz
• 1GB, 2GB, 4GB, and 8GB LPDDR4-3200 SDRAM with ECC
• Options for 8GB, 16GB, or 32GB eMMC flash
• Option for 0GB eMMC Flash (CM4SLite only)
• 1 x USB 2.0 port (high speed)
• 46 x GPIO signals
• 1 x SDIO 2.0 (CM4SLite only)
• 1 x HDMI® 2.0 port (up to 4Kp60 supported)
• 1 x 2-lane MIPI DSI display interface
• 1 x 4-lane MIPI DSI display interface
• 1 x 2-lane MIPI CSI camera interface
• 1 x 4-lane MIPI CSI camera interface
• 1 x composite TV out (PAL or NTSC)
• H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
• OpenGL ES 3.0 graphics
