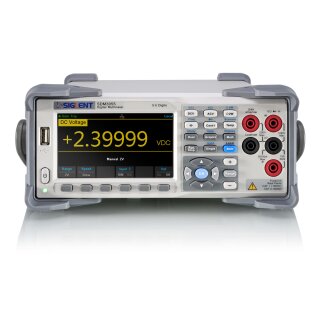

Siglent SDM3055 Benchtop Multimeter
Description
The SDM3055/SDM3055-SC is a digital multimeter designed with 5½ digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction and automatic measurement.
User-Friendly Design
- 4.3" TFT-LCD, 480*272 display
- Supports dual-display, Chinese and English Menu
- Built-in front panel accessible help system
- File management (support for U-disc and local storage)
| Basic Measurement Functions | |
|---|---|
| DC Voltage | 200 mV - 1000 V |
| DC Current | 200 μA - 10 A |
| AC Voltage | True-RMS, 200 mV - 750 V |
| AC Current | True-RMS, 20 mA - 10 A |
| 2/4-Wire Resistance | 200 Ω - 100 MΩ |
| Capacitance | 2 nF - 10000 μF |
| Continuity Test | Range is fixed at 2 kΩ |
| Diode Test | Adjustable range is 0 - 4V |
| Frequency Measurement | 20 Hz - 1 MHz |
| Period Measurement | 1 μs - 0.05 s |
| Temperature | Support for TC and RTD sensor |
| Math Functions | Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, TrendChat |
Main Features
- Real 5½ digits readings resolution (240,000 counts)
- Up to 150 rdgs/s measurement speed
- True-RMS AC Voltage and AC Current measuring
- 1 Gb Nand flash size, Mass storage configuration files and data files
- Built-in cold terminal compensation for thermocouple temperature measurements
- With easy, convenient and flexible PC software: EasyDMM
- Standard interfaces: USB Host, LAN (Optional Accessories USB-GPIB Adapter)
- Support remote control operation via SCPI commands. Compatible with commands of main stream multimeters
- Scanner Card SC1016 (Only for SDM3055-SC)
Package Contents
- Device
- Power Cord
- USB Cable
- Quick Start Guide
- Calibration Certificate
- Test Leads and Alligator Clips
| Shipping weight: | 4.90 Kg |
