Beschreibung
RGB multi-features digital clock for Pico
64×32 RGB matrix, accurate RTC, multi-features
open source, programable, expansion support

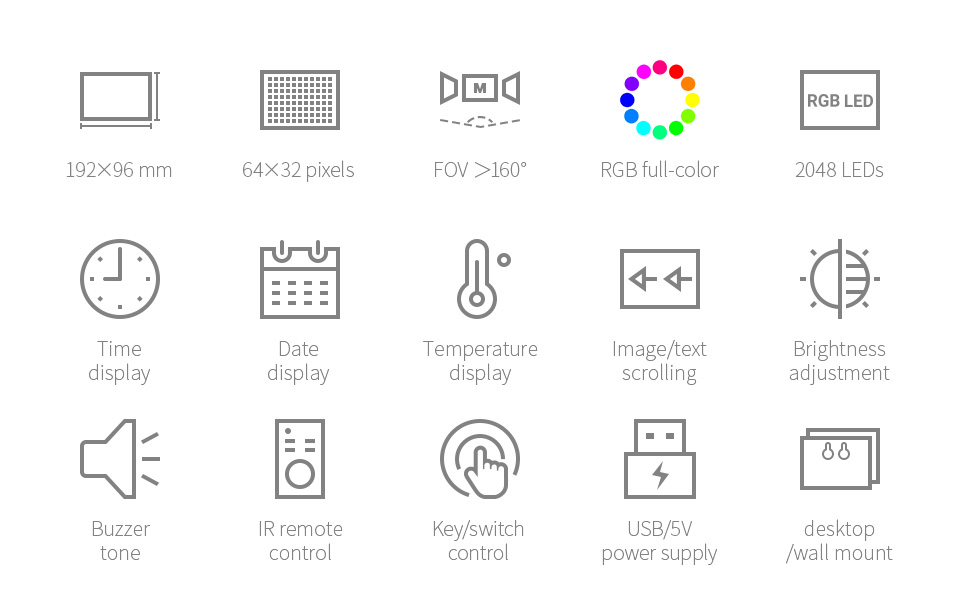

Features at a glance

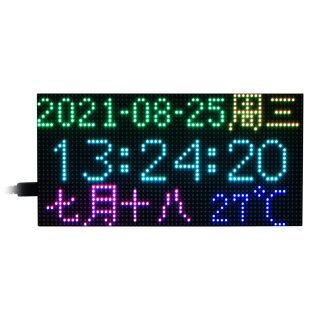

This is a RGB LED matrix digital clock designed for Raspberry Pi Pico. It incorporates high precision RTC chip DS3231, photosensor, buzzer, IR receiver, and buttons, features multiple functions including accurate electronic clock, temperature display, auto brightness adjustment, alarm, and button config. The important part is, rich open source codes and development tutorials are also provided to help you fast get started with Raspberry Pi Pico and make your own original electronic clock.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series

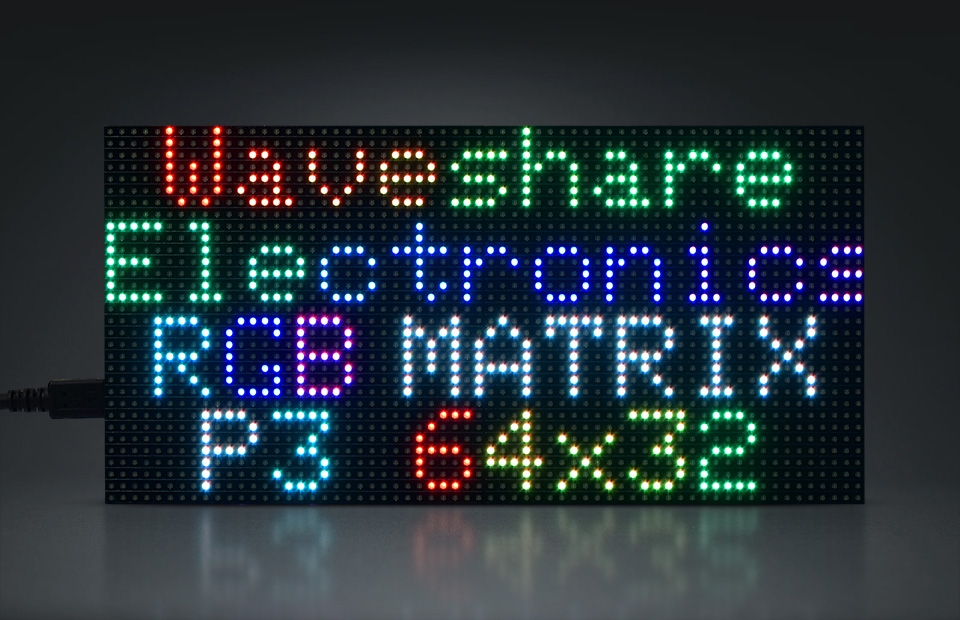

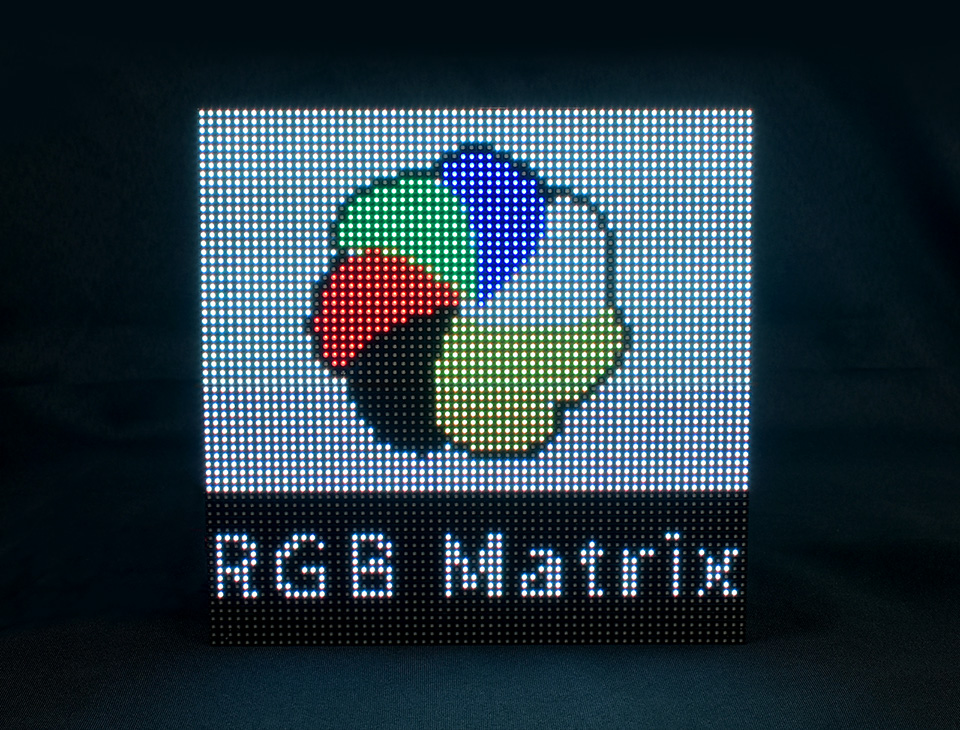

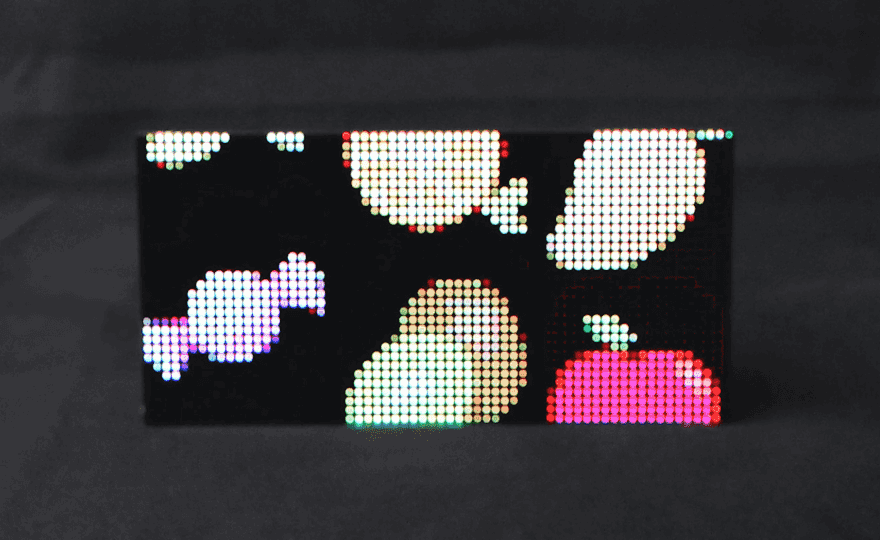

- Using P3 fine-pitch RGB LED matrix panel, with 2048 individual RGB LEDs, 64×32 pixels, 3mm pitch, allows displaying text, colorful image, or animation
- Onboard high precision RTC chip DS3231, with backup battery holder (battery NOT included), maintains accurate timekeeping when main power is off
- Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
- Optional format : 24-hour OR 12-hour with an AM/PM indicator
- 2x programable alarm clock
- Digital temperature sensor output: ±3°C accuracy
- Embedded photosensor for auto brightness adjustment due to the ambient light, power saving and eye care
- Embedded buzzer for alarm or hourly ring, etc.
- IR receiver, combined with the IR remote controller, supports IR wireless control
- 5x buttons for configuration, reset, and code programming
- Quality acrylic back panel and dimmer panel, better looking, more comfortable displaying
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

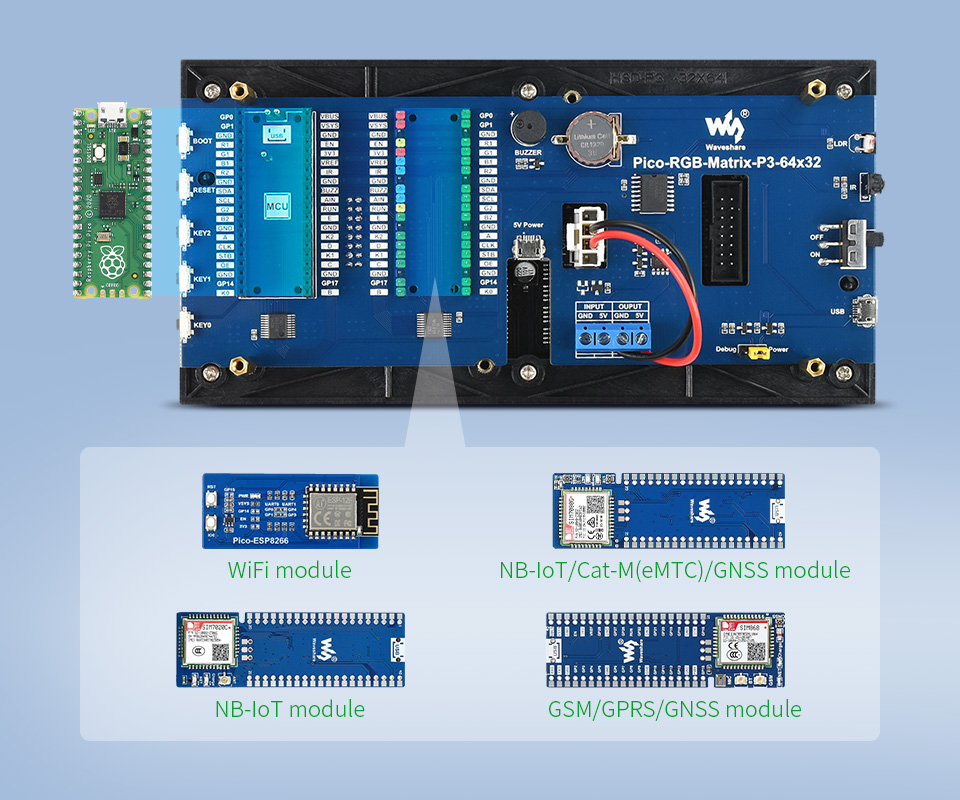

Raspberry Pi Pico header compatibility
allows attaching Raspberry Pi Pico directly, and certain Pico expansion modules

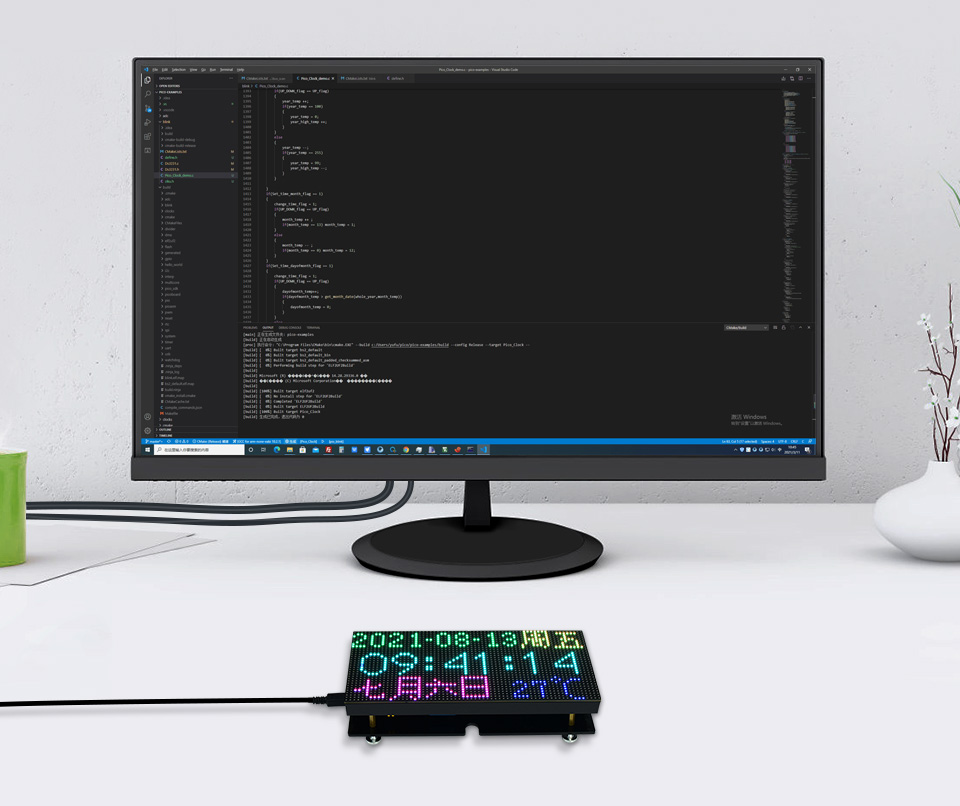

Programable & study-helpful
Not only for power supply, the USB port can also be used for debugging, helps you fast get started with Raspberry Pi Pico C/Python program support, software and hardware open source, rich study and development tutorials

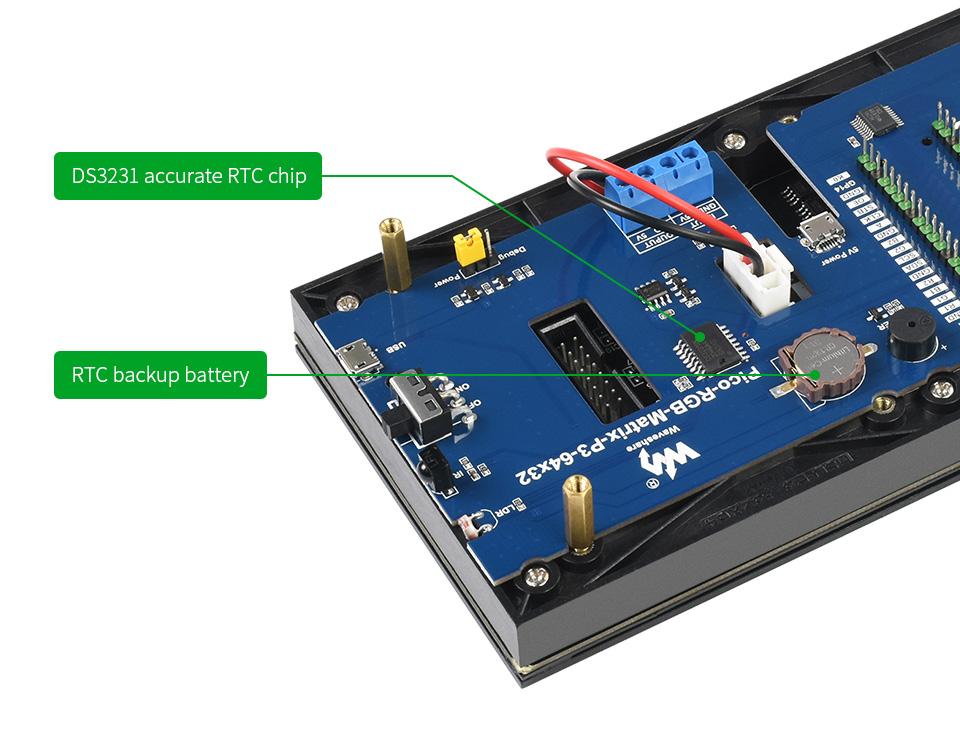

precision RTC chip DS3231
incorporates high precision RTC chip DS3231, with integrated temperature sensorbackup battery for continuous timekeeping when power-off

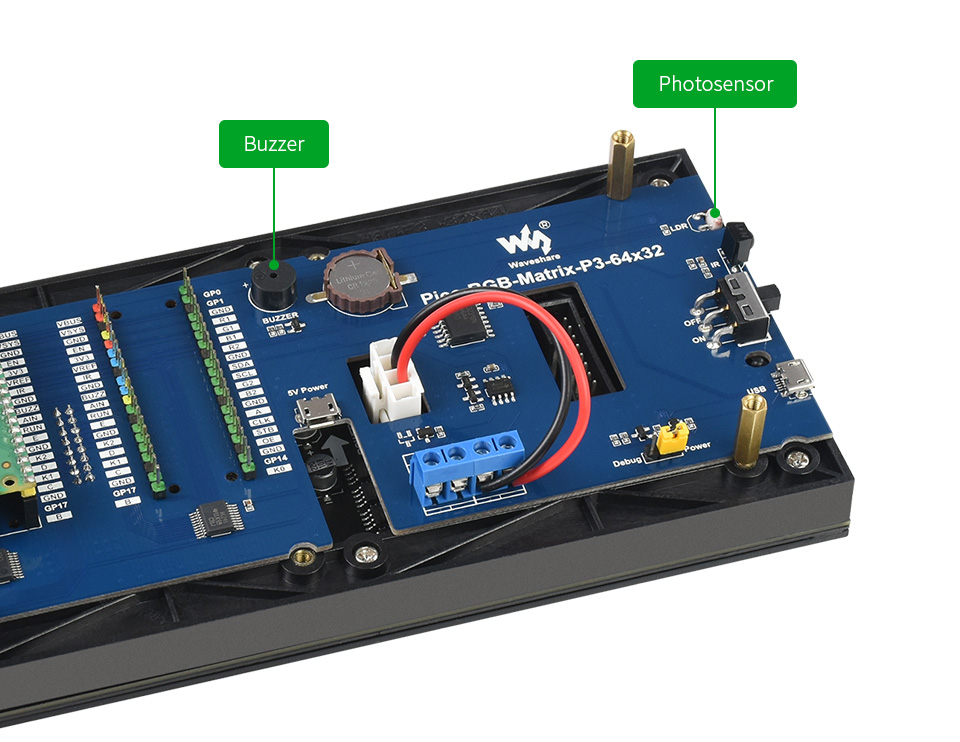

photosensor & buzzer
photosensor enables auto brightness adjustment due to ambient lightbuzzer can be used for alarm, hourly ring, or playing music

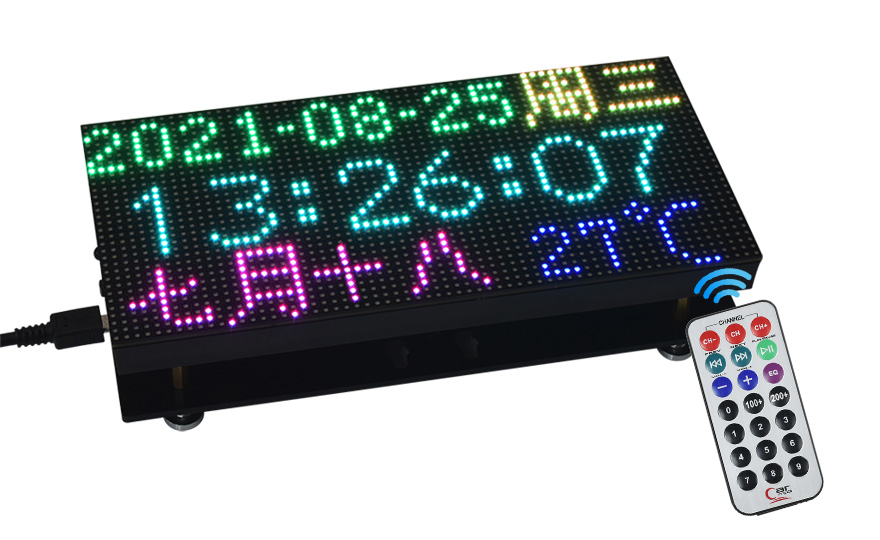

IR remote control
onboard IR receiver, comes with IR remote controller, more handy to use
multi software functions support
time/date/day of week displaying, configuration via buttons, animation displayingand more other functions could be created by yourself
chainable design
multi LED matrix panel can be chained together to build a larger panel via HUB75 input/output header
more effects through acrylic panels

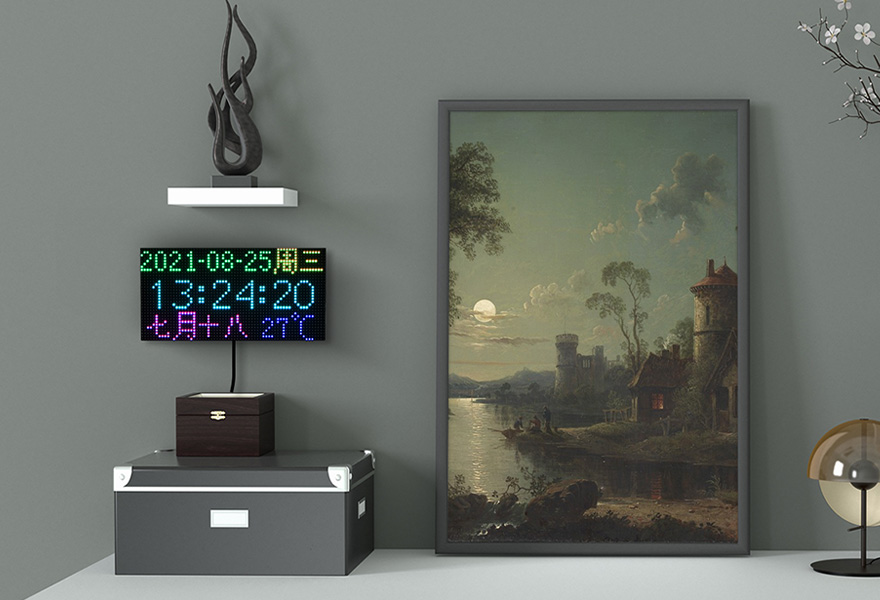

Usage scenarios

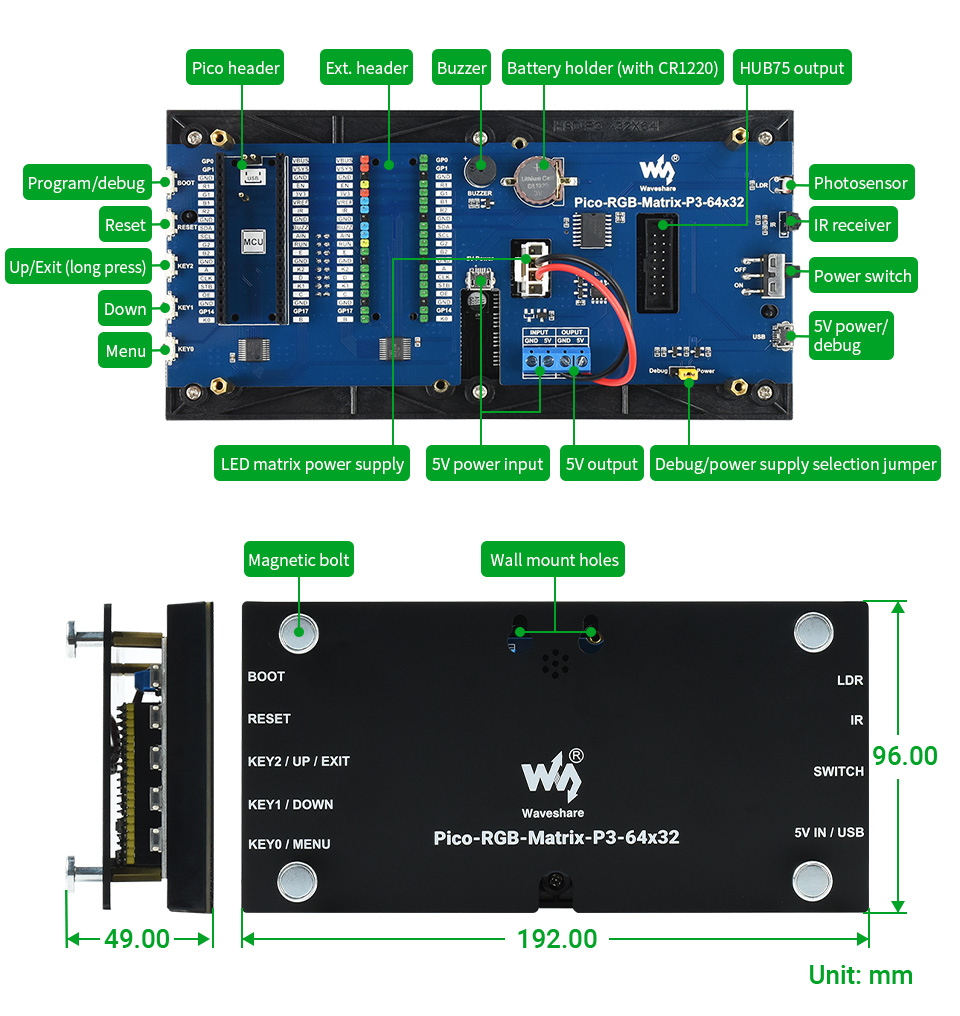

Introduction & dimensions
* The dimensions are measured manually, for reference ONLY
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

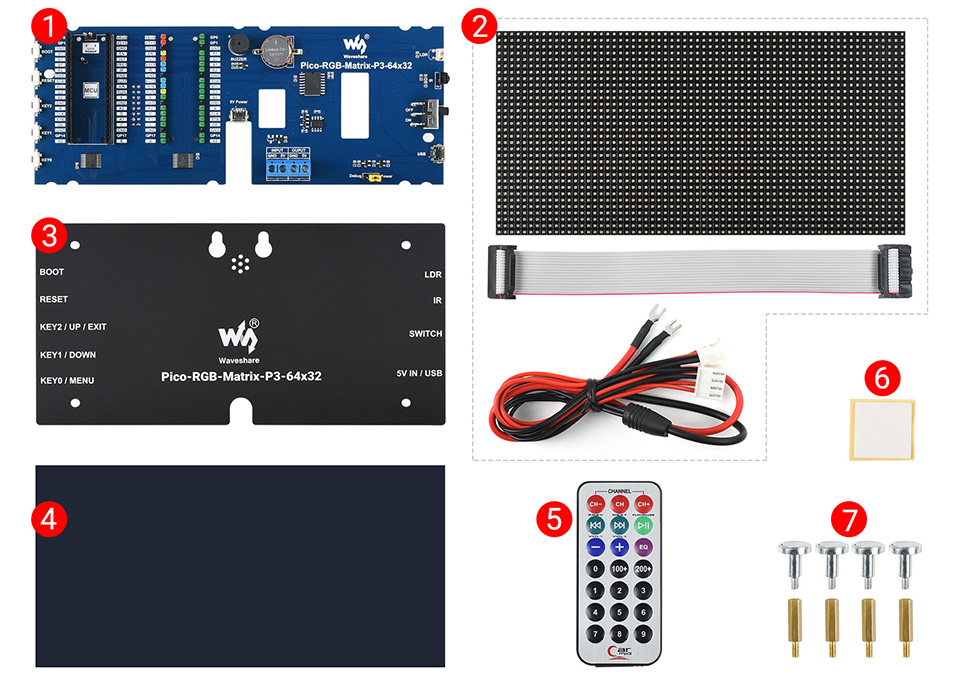

Package Contents
- Pico-RGB-Matrix-P3-64x32 base board x1 excluding CR1220 battery
- RGB-Matrix-P3-64x32 LED matrix and accessories x1
- Black acrylic back panel x1
- Dark brown acrylic front panel x1
- IR remote controller x1
- Double-sided tape x1
- Screws pack x1
Versandgewicht: | 0,49 Kg |
