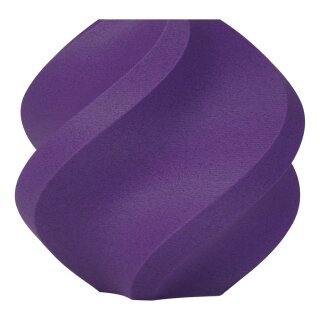

Bambu Lab PLA-CF Filament on Spool 14700 Iris Purple
Description
Bambu PLA-CF is carbon fiber reinforced PLA with improved stiffness and strength. PLA-CF is easy to print and beginner-friendly like regular PLA. It is AMS compatible with low clogging risk at high-speed printing. The prints are in matte finish with almost invisible layer lines, which make it suitable for printing general engineering parts or models requiring a better appearance, like bike frames, brackets and toys. Additionally, Bambu PLA-CF features low shrinkage and warping resistance to achieve a perfect matching accuracy between prints parts.
Printing Tips
- Recommended Build Plate: Cool Plate, High Temperature Plate, or Textured PEI Plate
- Recommended Hotend: Hardened Steel Nozzle (0.4 / 0.6 / 0.8 mm)
- Drying conditions: 55℃ for 8 hrs. Store in a dry environment after use. Dry before use if the material absorbs moisture. For more details please refer to: Filament drying instructions on Bambu Lab Wiki.
- Feel free to reuse your Bambu Reusable Spool. Bambu Lab has designed the entire filament feeding system around a reusable spool concept, reducing plastic waste in filament consumption by at least 20%.
- All printing parameters are embedded in RFID, accessible through Bambu Lab AMS (Automatic Material System). Load and print! No more tedious setup steps.
Model Overview
Color | Hex Code | Display |
---|---|---|
Burgundy Red | #951E23 | |
Matcha Green | #5C9748 | |
Jeans Blue | #6E88BC | |
Royal Blue | #2842AD | |
Iris Purple | #69398E | |
Lava Gray | #4D5054 | |
Black | #000000 |
Recommended Printing Settings | |
---|---|
Drying Settings (Blast Drying Oven) | 55 ℃, 8 h |
Printing and Keeping, Container's Humidity | <20% RH (Sealed, with Desiccant) |
Nozzle Temperature | 210 - 240 ℃ |
Bed Temperature (with Glue) | 35 - 45 ℃ |
Printing Speed | < 200 mm/s |
Physical Properties | |
Density | 1.22 g/cm³ |
Vicat Softening Temperature | 69 ℃ |
Heat Deflection Temperature | 55 ℃ |
Melting Temperature | 165 ℃ |
Melt Index | 3.7 ± 0.6 g/10 min |
Mechanical Properties | |
Tensile Strength | 38 ± 4 MPa |
Breaking Elongation Rate | 8.4 ± 3.2 % |
Bending Modulus | 3950 ± 190 MPa |
Bending Strength | 89 ± 4 MPa |
Impact Strength | 23.2 ± 3.7 kJ/m² |
Package Contents
- Filament x 1 & Desiccant x 1
- Package x 1
- Filament Label x 1
Features
Carbon Fiber Texture
Minimal Layer Lines
Matte Finish
Compatibility
Bambu PLA-CF could be paired with any PLA series filament to make your prints more colorful and achieve various texture requirements.
Stablized printing dimension
Bambu PLA-CF features low shrinkage and warping resistance to achieve a perfect matching accuracy between prints parts.
Minimal effort in support removal
Bambu PLA-CF is designed to support itself. It can be removed more easily compared to regular PLA, and still maintains a smooth support surface.
Not prone to clogging in high-speed printing
Bambu PLA-CF is just as easy to print as regular PLA. It can be printed smoothly and consistently at high speed without clogging.
Improved mechanical properties
Bambu PLA-CF exceeds the mechanical properties of PLA Matte in XY Bending Strength, Z Bending Strength, XY Bending Modulus, Z Bending Modulus, XY Impact Strength, and Z Impact Strength by between 20% and 115%, making it more suitable for printing models with higher strength requirements.
Shipping weight: | 1.40 Kg |
