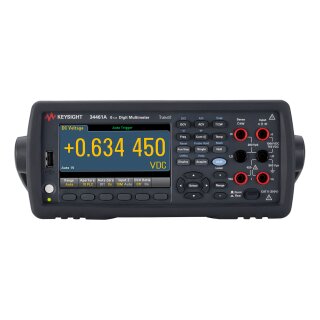

Keysight 34461A Benchtop Multimeter ISO Calibrated
Description
Keysight's latest Truevolt Digital Multimeters (DMMs) provide a comprehensive set of measurement features and pricing options, delivering increased precision, speed, and resolution.
Get more insight quickly
The graphical features of Truevolt DMMs, such as trend and histogram charts, offer swift access to additional insights. Both models also include a data logging mode to facilitate trend analysis and a digitizing mode for capturing transients.
Measure low-power devices
The capability to measure extremely low currents, within the 1 µA range with pA (picoampere) resolution, enables precise measurements on devices with very low power consumption.
Maintain calibrated measurements
Automatic calibration enables you to offset temperature variations, ensuring consistent measurement accuracy throughout your workday.
Model Overview
| Models | 34460A | 34461A | 34465A | 34470A |
|---|---|---|---|---|
| Digits of resolution | 6½ | 6½ | 6½ | 7½ |
| Basic DCV accuracy | 75 ppm | 35 ppm | 30 ppm | 16 ppm |
| Max Reading Rate | 300 rdgs/s | 1.000 rdgs | 10.000 rdgs | 50.000 rdgs/s |
| Memory | 1.000 rdgs | 10.000 rdgs | 50.000 rdgs std 2 million rdgs opt |
50.000 rdgs std 2 million rdgs opt |
| 34460A | 34461A | 34465A | 34470A | |
|---|---|---|---|---|
| Measurement | ||||
| DCV | 100 mV to 1.000V | |||
| ACV (RMS) | 100 mV to 750 V | |||
| DC | 100 µA up to 3A | 100 µA up to 10A | 1 µA up to 10A | |
| ACI | 100 µA up to 3A | 100 µA up to 10A | ||
| 2- and 4-wire resistance | 100Ω up to 100MΩ | 100Ω up to 100GΩ | ||
| Continuity, diode | Y, 5 | |||
| Frequency, period | 3 Hz to 300 kHz | |||
| Temperature | RTD/PT100, thermistor | RTD/PT100, thermistor, thermocouples | ||
| Capacitance | 1 nF to 100 µF | |||
| Dual line display | yes | |||
| Display | Color, graphical | |||
| Statistical graphics | Histogram, bar meter | Histogram, ar meter, trend Chart | ||
| Rear input terminals | No | Yes | ||
| IO interface | USB | Yes | ||
| LAN/LXI Core | Optional | Yes | ||
| GPIB | Optional | |||
| Shipping weight: | 5.95 Kg |
