Description

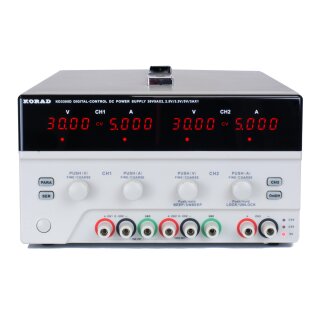

The KORAD KD multi-channel series DC power supply utilizes digital encoders and button controls for simple and convenient operation, ensuring safety and reliability. It features series and parallel output operations with triple-way adjustable control. Specifically, CH1 and CH2 can output voltages ranging from 0 to 30V, while CH3 offers three voltage options: 2.5V, 3.3V, and 5V.
Additionally, the power supply includes an output switch and shutdown memory function. Fine and coarse adjustments can be easily made by pressing the knobs. The knobs offer two operating modes: continuous adjustment and lock adjustment, providing convenient and reliable operation. The keyboard can be locked to prevent improper use.
In terms of interfaces, the product is equipped with LAN, USB, and RS232, accompanied by a comprehensive set of SCPI instructions. This feature-rich interface facilitates quick setup of the test system for engineers, and it includes Labview drivers and programming examples for added convenience.
| Model | KD3305 |
|---|---|
| Voltage Range | 0 - 30 V |
| Current Range | 0 - 5 A |
| Load Regulation | Voltage Range | ≤ 0.01 % + 5 mV |
| Current Range | ≤ 0.1 % + 10 mA |
| Load Regulation | |
| Voltage Range | ≤ 0.01 % + 3 mV |
| Current Range | ≤ 0.1 % + 3 mA |
| Setup Resolution | |
| Voltage Range | 10 mV |
| Current Range | 1 mA |
| Setup Accuracy (25°C ± 5°C) | |
| Voltage Range | ≤ 0.5 % + 20 mV |
| Current Range | ≤ 0.5 % + 10 mA |
| Ripple(20 - 20M) | |
| Voltage Range | ≤ 2mVrms |
| Current Range | ≤ 3mArms |
| Temp. Coefficient | |
| Voltage Range | ≤ 100 ppm + 10 mV |
| Current Range | ≤ 100 ppm + 5 mA |
| Read Back Resolution | |
| Voltage Range | 10 mV |
| Current Range | 1 mA |
| Read Back Temp. Coefficient | |
| Voltage Range | ≤ 100 ppm + 10 mV |
| Current Range | ≤ 100 ppm + 5 mA |
| Reaction Time | ≤ 100 mS (10% Rated load) |
| Interface (for programmable models only) | RS232, USB |
| Load Regulation of Parallel | ≤ 0.1% + 0.2 V |
| Load Regulation of Series | ≤ 0.1% + 0.1 V |
| Ch3 Specifications | |
| Voltage Range | 5 V / 3.3 V / 2.5 V |
| Current Range | 3 A |
| Voltage Accuracy | ± 50 mV |
| Load Regulation | ± 50 mV |
Variations & Editions
| Variatiants | ||||
| Variant | D | D+ | P | P+ |
| Programable | No | Yes | ||
| Interfaces | none | USB/RS232/LAN | ||
| Editions | ||||
| Housing Color Front/Case | Grey/Grey | Grey/Black | Grey/Grey | Grey/Black |
| Display: | single color LED Display(red) | two color LED Display(green/red) | single color LED Display(red) | two color LED Display(green/red) |
| Terminals | ||||
| Terminal | (Sc) Screw Terminals | (Sc) Screw Terminals or (Sa) Safety Terminals | (Sc) Screw Terminals | (Sc) Screw Terminals or (Sa) Safety Terminals |
Example
KD3305P+(Sa):
- Programmable Benchtop Power Supply with USB/RS232/LAN connectors
- Housing color (Front/Case): Grey/Black and a two color LED Display(green/red)
- Safety Terminals
| Shipping weight: | 9.90 Kg |
