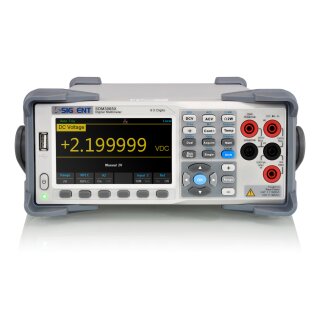

Siglent SDM3065X-SC Benchtop Multimeter with Multiplexer

Digital benchtop multimeter (DMM) with 12 channel multiplexer, 6 1/2 digits (2 200 000 counts), 0.0015% basic precision, 10 kSa/s sample rate

Variant

819 €SDM3065X1,116 €SDM3065X-SC (incl. SC1016 12 Channel Multiplexer)

1,116.00 € incl. 19% VAT

937.82 € excl. VAT

Free shipping within Germany

On stock

Shipping time: 1 - 3 business days

Description

The SDM3065X / SDM3065X-SC is a 6 ½ digit DMM (digital multimeter with 2,200,000 counts) incorporating a dual-display. The SDM3065X series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.

Basic Measurement Functions
DC Voltage	200 mV - 1000 V
DC Current	200 μA - 10 A
AC Voltage	True-RMS, 200 mV - 750 V
AC Current	True-RMS, 200 μA - 10 A
2/4-Wire Resistance	200Ω - 100 MΩ
Capacitance	2 nF - 100 mF
Diode Test	Adjustable range is 0 - 4V
Frequency Measurement	3 Hz - 1 MHz
Period Measurement	1 μs - 333.33 ms
Continuity Test	Range is fixed at 2 kΩ
Temperature	Support for TC and RTD sensors
Math Functions	Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter, etc.

Main Features

4.3" TFT-LCD, 480*272
Real 6½ digits readings resolution (2,200,000 counts)
1Gb Nand flash size, Mass storage configuration files and data files
Supports double display, Chinese and English Menu
File management (support for U-disc and local storage)
Built-in cold terminal compensation for thermocouple
Measurement control software: EasyDMM
Interfaces: USB Device, USB Host, LAN, USB-GPIB Adapter (optional)
Built-in help system makes information acquisition easier
Support remote control operation via SCPI commands. Compatible with commands of other main stream multimeters
True-RMS AC Voltage and AC Current measuring
Comes with easy, convenient and flexible any sensor
Scanner Card SC1016 (Only for SDM3065X-SC)
